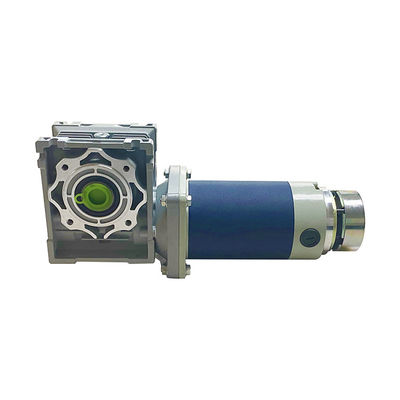

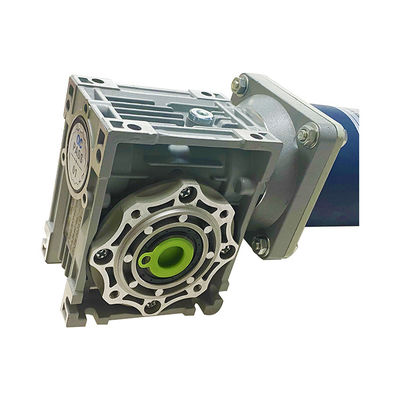

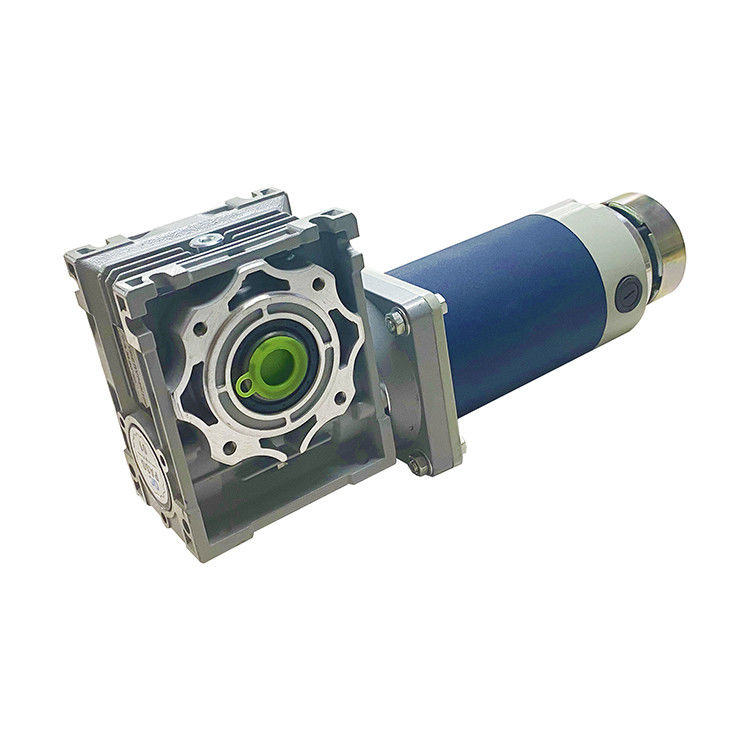

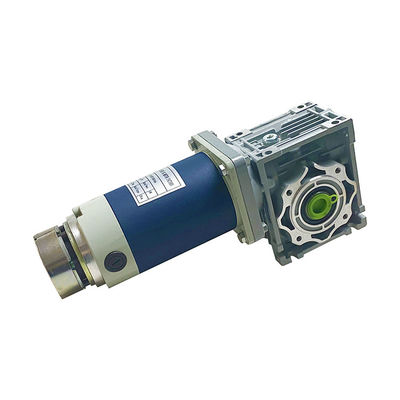

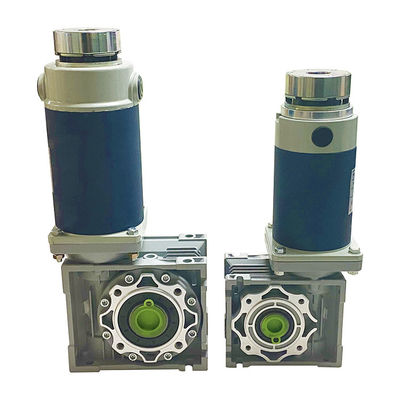

90mm Worm Gear DC Motor 250W 12V 24V D Shaft Type 50rpm YLP 80BL-154-3
Product Details:
| Place of Origin: | Fujian,China, Fujian China |
| Brand Name: | Yalop |
| Model Number: | YLP 90ZYT1433 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 pieces |
|---|---|
| Price: | $62.20/pieces 500-1999 pieces |
| Packaging Details: | EPE Foam + Carton + Pallet ; |
| Delivery Time: | Standard product need 5-30days, a bit longer for customized products. |
| Payment Terms: | T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union |
| Supply Ability: | 30000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3months-1year | Use: | BOAT, Car, Electric Bicycle, FAN, Home Appliance |
|---|---|---|---|
| Type: | Carbon Brushed, GEAR MOTOR | Torque: | 0.32-0.64N.m |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Totally Enclosed | Speed(RPM): | 3000rpm |
| Continuous Current(A): | 12.8A | Efficiency: | Ie 3 |
| Keywords: | Brushed Dc Electric Motor | Product Name: | Brushed Dc Motor 90ZYT |
| Color: | Blue | Motor Diameter: | 90mm |
| Shaft Type: | D Shaft | Gear Material: | Brass Gear |
| Rated Voltage: | 24V | Bearing: | Ball |
Product Description
Product Description
Specification
|
item
|
DCmotor
|
|
Warranty
|
3months-1year
|
|
Place of Origin
|
Fujian,China
|
|
Brand Name
|
Yalop
|
|
Model Number
|
YLP 90ZYT1433
|
|
Usage
|
BOAT, Car, Electric Bicycle, FAN, Home Appliance
|
|
Type
|
Carbon Brushed
|
|
Torque
|
0.32-0.64N.m
|
|
Construction
|
Permanent Magnet
|
|
Commutation
|
Brush
|
|
Protect Feature
|
Totally Enclosed
|
|
Speed(RPM)
|
3000rpm
|
|
Continuous Current(A)
|
12.8A
|
|
Efficiency
|
Ie 3
|
|
Place of Origin
|
Fujian China
|
|
Keywords
|
Brushed Dc Electric Motor
|
|
Product Name
|
brushed dc motor 90ZYT
|
|
Color
|
Blue
|
|
Motor diameter
|
90mm
|
|
Type
|
GEAR MOTOR
|
|
Shaft type
|
D Shaft
|
|
Gear Material
|
Brass Gear
|
|
Rated Voltage
|
24V
|
|
Bearing
|
Ball
|
Packing & Delivery
Company Profile
Zhangzhou Yalop Motor Technology Co., Ltd. specialising in the development and production of treadmill permanent magnet DC motors,lifting motors, massage chair motors, all kinds of gear motors, brushless motors and small household appliances products.
With an annual output of 1 million units of motor technical strength and processing capacity, the products are exported to Europe and the United States, in recent years, through the continuous upgrading of the product and the market
In 2005, we faced the domestic and international markets with a brand new attitude, and won the unanimous praise from the industry for our superior quality and market share.
We are committed to the continuous improvement of our quality management system.
We will be committed to the continuous improvement of the quality management system, scientific management, and gradually improve the service price system, and constantly pursue product innovation, technological upgrading.
Pursuing product innovation, technological upgrading, broadening the scope of business, is committed to providing our customers with more advanced, more favourable products and services.
With an annual output of 1 million units of motor technical strength and processing capacity, the products are exported to Europe and the United States, in recent years, through the continuous upgrading of the product and the market
In 2005, we faced the domestic and international markets with a brand new attitude, and won the unanimous praise from the industry for our superior quality and market share.
We are committed to the continuous improvement of our quality management system.
We will be committed to the continuous improvement of the quality management system, scientific management, and gradually improve the service price system, and constantly pursue product innovation, technological upgrading.
Pursuing product innovation, technological upgrading, broadening the scope of business, is committed to providing our customers with more advanced, more favourable products and services.
FAQ
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.
Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q:What is the special motor for treadmill?
A:The special motor for treadmill is the electric motor that drives the treadmill to drive the treadmill belt power. It provides
the necessary power to enable the treadmill to provide an exercise platform with varying speeds and resistance.
Q: What are the types of motors for treadmills?
A:Motors for treadmills are usually divided into two types: DC motors and AC motors. DC motors provide consistently high torque and have a greater speed range and variable speed control. AC motors, on the other hand, are typically quieter, more reliable, and easier to maintain.
Q: How do I choose the power of a motor for a treadmill?
A:The power of a motor for a treadmill is usually expressed in horsepower (HP). Choosing the appropriate power depends on how often the treadmill is used, the user's weight and the maximum speed required. Generally speaking, the power of regular home treadmills ranges from 1.5 to 3.0 HP.
Q: How to judge whether a motor for treadmills is good or not?
A:The quality and performance of motors for treadmills can be assessed from the following aspects: reliability of the motor, noise level, maximum load carrying capacity, smoothness of variable speed control, and versatility of functions. Refer to product specifications and user reviews when selecting a motor.
Q: Do treadmill motors require maintenance?
A:Yes, treadmill motors require regular maintenance to maintain their optimal performance. The main maintenance tasks include cleaning the motor casing, checking the ventilation of the fan and motor, and lubricating the mechanical parts. The specific manual can be found in the treadmill's instruction manual.
A: Yes. Sample is available for testing.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.
Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q:What is the special motor for treadmill?
A:The special motor for treadmill is the electric motor that drives the treadmill to drive the treadmill belt power. It provides
the necessary power to enable the treadmill to provide an exercise platform with varying speeds and resistance.
Q: What are the types of motors for treadmills?
A:Motors for treadmills are usually divided into two types: DC motors and AC motors. DC motors provide consistently high torque and have a greater speed range and variable speed control. AC motors, on the other hand, are typically quieter, more reliable, and easier to maintain.
Q: How do I choose the power of a motor for a treadmill?
A:The power of a motor for a treadmill is usually expressed in horsepower (HP). Choosing the appropriate power depends on how often the treadmill is used, the user's weight and the maximum speed required. Generally speaking, the power of regular home treadmills ranges from 1.5 to 3.0 HP.
Q: How to judge whether a motor for treadmills is good or not?
A:The quality and performance of motors for treadmills can be assessed from the following aspects: reliability of the motor, noise level, maximum load carrying capacity, smoothness of variable speed control, and versatility of functions. Refer to product specifications and user reviews when selecting a motor.
Q: Do treadmill motors require maintenance?
A:Yes, treadmill motors require regular maintenance to maintain their optimal performance. The main maintenance tasks include cleaning the motor casing, checking the ventilation of the fan and motor, and lubricating the mechanical parts. The specific manual can be found in the treadmill's instruction manual.
